Cheese Popcorn Salty Gourmet Popcorn Foods Products Packaging Machinery in Nigeria Uganda Ghana
Corn Puffs Snack Foods Products Packaging machinery Export Nigeria Uganda Australia Canada Ghana

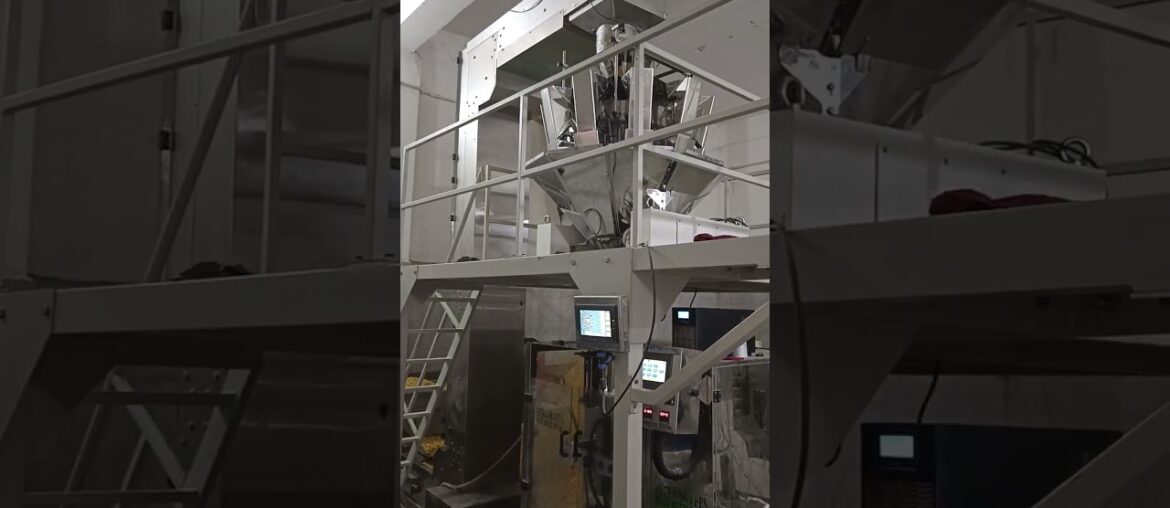

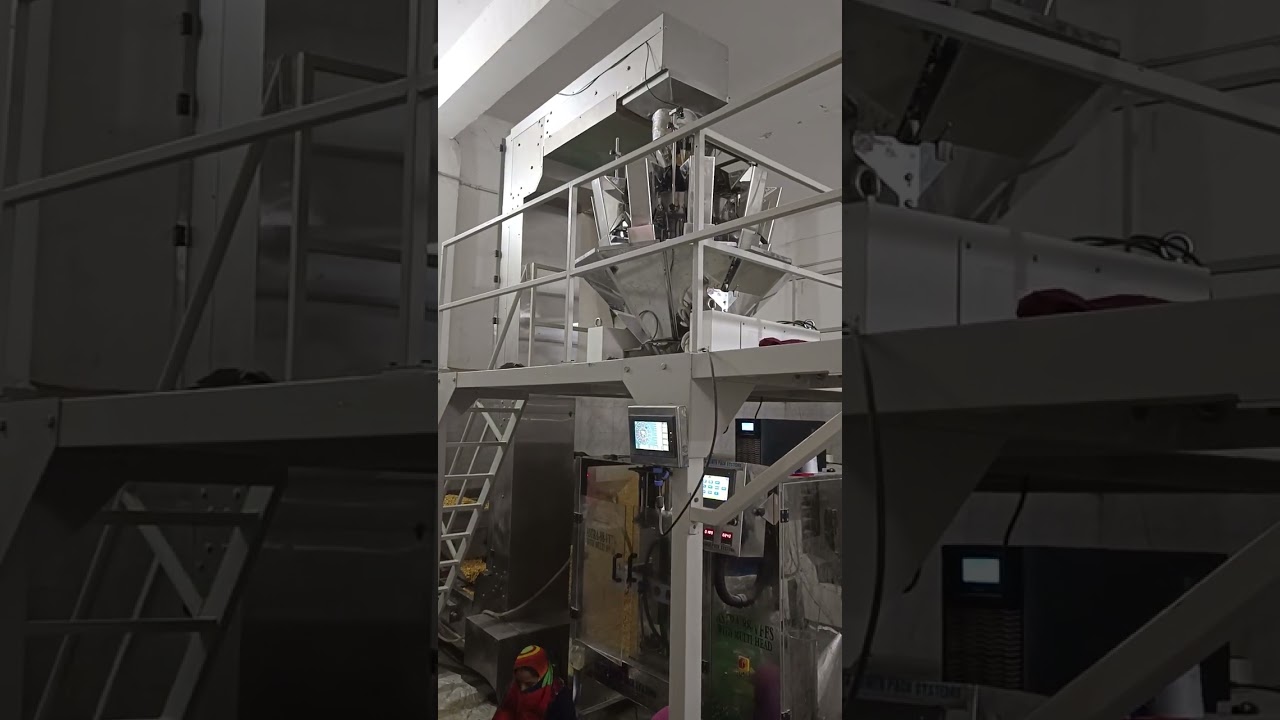

Nut and snacks food packaging machine with 10 Head multi head weigher combination scale weighing packing machine
ASTRA- 88 MODEL – Vertical Form Fill Seal machine to pack Namkeens,
. Our offer is as follows.
Pack Type:- Center sealed Pillow Pouch
Film Type :- Heat Sealable Multilayer Laminate.
Filling Rage-200gms To 900gms
Filler Type :- Weighed
Accuracy :- +/- 1gm of fill volume
Speed :- 15 to 40 packs per min
VERTICAL FORM FILL SEAL MACHINE HF
– Pneumatic Type machine with coller.
– Constant heat seal bars for sealing the horizontal seal and double draw for vertical seal. controlled Induction motor for film draw down by rubbarised belts.
– make PLC with 7” colour touch screen HMI for controls.
– Motors for film unwinding and trolley movement.
– PID controllers for temperature control.
– MS sq pipe structure with ceramic painting, with all contact parts in SS 304.
– With one set of forming size parts.
.
A) TECHNICAL SPECIFICATIONS OF VFFS BAGGER MODEL 80-VFFS
(W/O PULLING BELTS). Servo Motor , LXM 26 Modal-
Operational control of VFFS Bagger thru PLC M200 controller, SCHNEIDER- ..
Temperature adjustment through PID CONTROLLERS -Motorized Film Unwinding Mechanism. Built in Print Mark registration Device, PEPPERL+FUCHS,-GERMANY.
Air removing flaps to remove most of air from pouch.
Level sensor for No Product No Pouch
MAX. ROLL WIDTH 500 mm.
Multi 10 Head
10 Head Weigher Specification
Volume 1.6L
Weight Range 20g – 1000g
Accuracy 0.5 – 1.5g
Max Speed 70 wpm
Programs 99
Control 7.4 inch touch screen
Construction Stainless Steel
Program Recovery Function yes
IP65 Waterproof Standard yes
Multiple Languages yes
Drive system Stepper Motor
Options
10 Head Multihead are our entry level machines. With a maximum speed of 70 weights per minute, these machines offer great advantages over Manual Weighing or Linear Weighing. With an accuracy of 0.5 – 1.5g per weight you will see savings immediately on product giveaway and weighing efficiency.
These machines are ideal for weighing dried fruit, nuts, seeds, crisps, vegetables, nuts and bolts etc. Multi easy-flowing with high accuracy;
• IP65waterproof and dustproof design, which is easy t clean and maintain; Multilanguage control panel, Spanish, Korean, German, French and Arabic,
Power Requirements 220V/1000W/50/60HZ/10A
Packing Dimension(mm) 1482(L)x1080(W)x1116(H)
